Space & Defence Engineering Section of Sempra & Patel Machinery developed a most accurate Planar Near-Field scanner systems to cater the high frequency measurement upto 200 GHz.

It can also be configured in horizontal scan plane to cater the characterization of large size, bulky in weight & gravitational sensitive antennas.

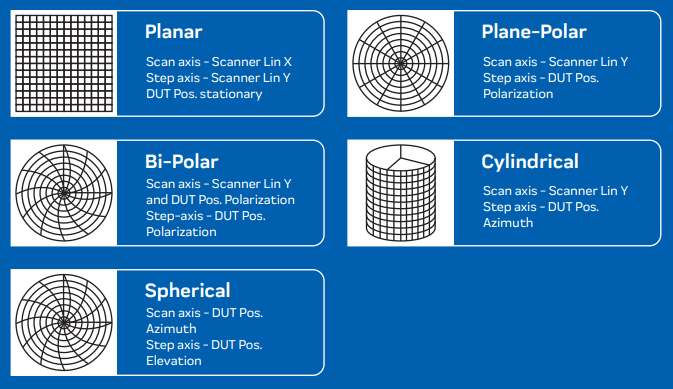

We have a wide range of Near-Field scanners available in sizes with a travel range from 0.5 m to 30 m. The developed scanner is a four axes assembly having Polarization positioner to support waveguide probe, linear Z-slide to manage distance between AUT (DUT) and probe, linear Y-slide (vertical axis in case of vertical scanner) and precision linear X-slide (floor slide).

it’s a lightweight vertical structure with high rigidity travels and load balancing mechanism to avoid the deflection due to gravity. The scanners are fitted with drive system based on customer applications. After installation at customer site, we do verify the planarity through laser alignment, calibration and our controller offers the real time position error correction algorithm to correct the measured data.
